Single Shot Peripheral Nerve Blocks

Arrow® StimuQuik® ECHO Echogenic Stimulating PNB Needle


  • Insulated needle shaft with a stimulating tip allows for needle guidance using stimulation and/or ultrasound
  • Features five grooved rings at the distal end of the needle cannula to help clinicians locate the tip of the needle under ultrasound
  • Designed with an atraumatic B-bevel tip for optimal balance between tactile feedback and penetration
  • Centimeter markings on needle shaft for visual confirmation of insertion depth
  • Ergonomic needle hub for precision grip
  • Extended length of injection tubing and electrical lead connections are designed to help reduce the risk of contamination to the sterile field

Ordering Information:

Item Number Gauge Length (cm) Length (in) Connector Qty/Case CE Mark
AB-22050-SSE 22 5 2 2.0 mm pin 25 Yes
AB-21090-SSE 21 9 3.5 2.0 mm pin 25 Yes
AB-21150-SSE 21 15 6 2.0 mm pin 25 Yes

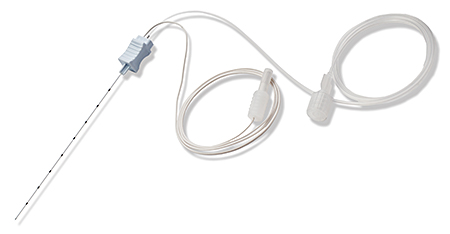

Arrow® StimuQuik® Stimulating PNB Needle


  • Insulated needle shaft with a stimulating tip allows for needle guidance using stimulation
  • Designed with an atraumatic B-bevel tip for balance between tactile feedback and penetration
  • Centimeter markings on needle shaft for visual confirmation of insertion depth
  • Ergonomic needle hub for precision grip
  • Extended length of injection tubing and electrical lead connections designed to help reduce the risk of contamination to the sterile field

Ordering Information:

Item Number Gauge Length (cm) Length (in) Connector Qty/Case
AB-22025-SS 22 2.5 1 2.0 mm pin 25
AB-22050-SS 22 5 2 2.0 mm pin 25
AB-21090-SS 21 9 3.5 2.0 mm pin 25
AB-21150-SS 21 15 6 2.0 mm pin 25

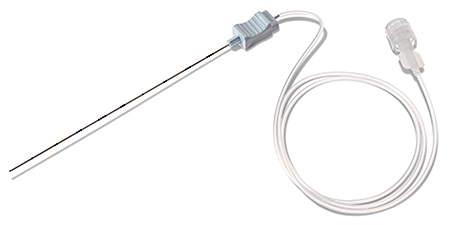

Arrow® UltraQuik® Echogenic PNB Needle


Arrow® UltraQuik® Echogenic PNB Needles are for clinicians who prefer to use ultrasound guidance when performing single-shot peripheral nerve blocks.

Ordering Information:

Item Number Gauge Length (cm) Length (in) Connector Qty/Case
AB-22025-SS 22 2.5 1 2.0 mm pin 25
AB-22050-SS 22 5 2 2.0 mm pin 25
AB-21090-SS 21 9 3.5 2.0 mm pin 25
AB-21150-SS 21 15 6 2.0 mm pin 25

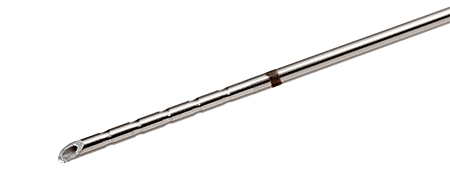

Arrow® UltraQuik® Tuohy Echogenic PNB Needle


The Arrow® UltraQuik® Tuohy Echogenic PNB Needle is for clinicians who prefer to only use ultrasound guidance when performing single-shot peripheral nerve blocks.

Ordering Information:

Item Number Gauge Length (cm) Length (in) Connector Qty/Case CE Mark
AB-20100-UST 20 10 4 n/a 25 Yes

Rx Only. Refer to package insert for complete warnings, indications, contraindications, precautions, potential complications and instructions for use. The products in this document may not be available in all countries. Please contact your local representative.
