Passive Humidification

Gibeck® Humid-Flo® HME


19912

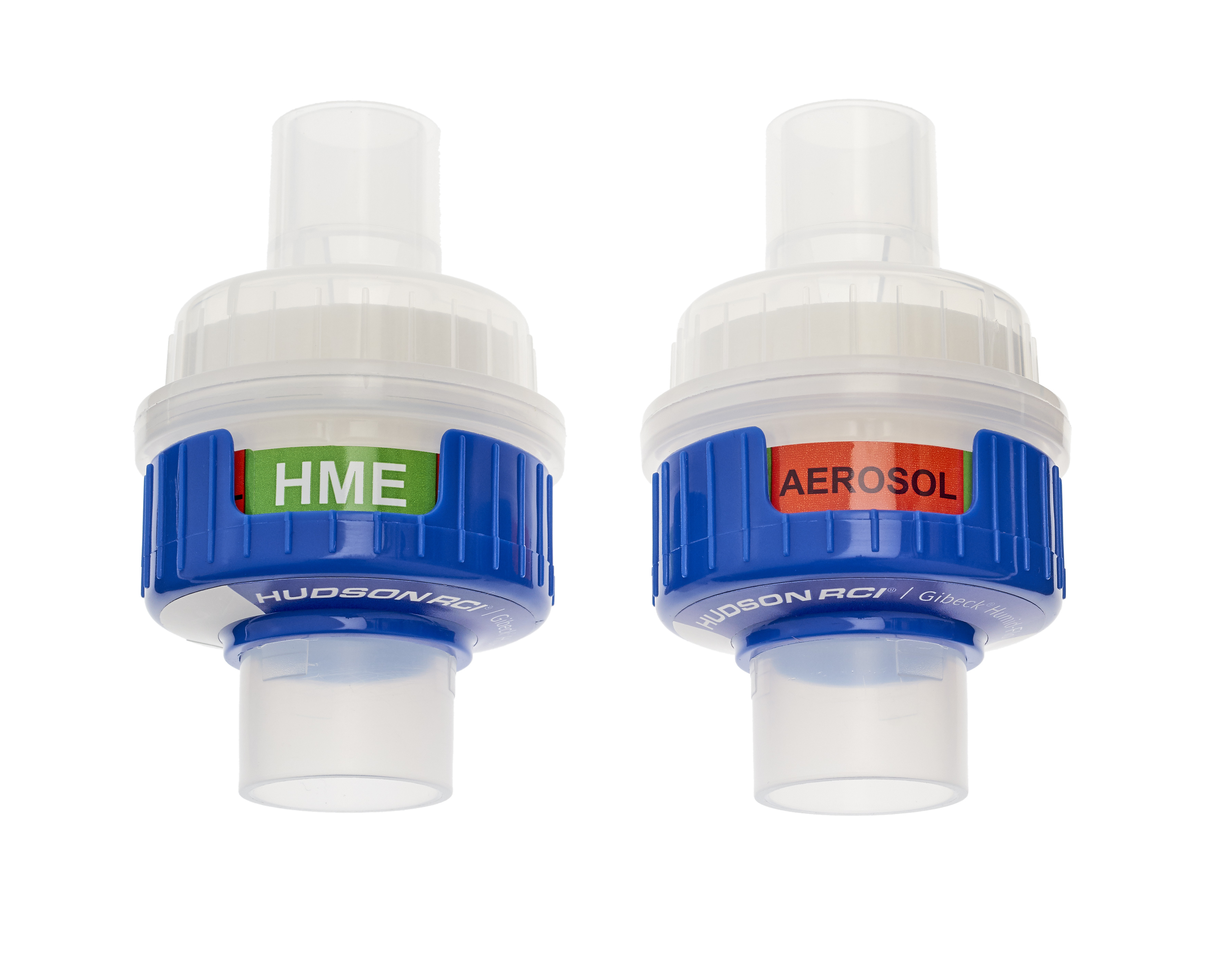

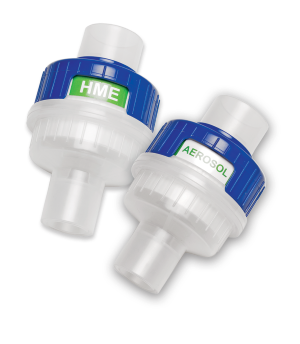

Gibeck® Humid-Flo®

The exclusive design of the Gibeck Humid-Flo HME allows it to remain in-line during the first 72 hours of mechanical ventilation, even during aerosol treatments.

  • Reduces circuit breaks aiding clinician adherence to clinical guidelines regarding infection control practices
  • Protects caregivers from exposure to depressurizing circuit spray
  • Allows for the delivery of SVN or MDI aerosols
  • Reduces the need to routinely interrupt ventilation, therefore maintains positive-end expiratory pressure
  • Hygroscopic bacteriostatic microwell paper media provide optimal moisture output with low resistance to flow

Individually packaged, 25 to a case.

GIBECK® HUMID-FLO® HEAT & MOISTURE EXCHANGER

ITEM
CODE

DESCRIPTION

TV RANGE
(mL)

MOISTURE OUTPUT
(mg H2O/L)

WEIGHT
(g)

RESISTANCE
(cm H2O)

DEAD SPACE
(mL)

BOX
QUANTITY

RGH912U

Gibeck® Humid-Flo® HME

250-1500

34.71, Vt = 1.0 L

42

HME: 1.5 cm H2O
@ 60LPM
Aerosol: 1.72 cm H2O
@ 60LPM

31.51

25

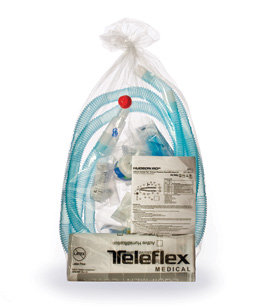

Gibeck® Humid-Flo® Passive Humidification Kit

Customizable kit options to initiate passive humidification, helping to improve clinician workflow.

  • Designed to promote best practices for VAP risk reduction
  • Reduces the need to stock multiple SKUs
  • Saves the clinician valuable time during setups because items are kitted
  • Eliminates the hidden costs of buying components separately
  • Available in a variety of different configurations

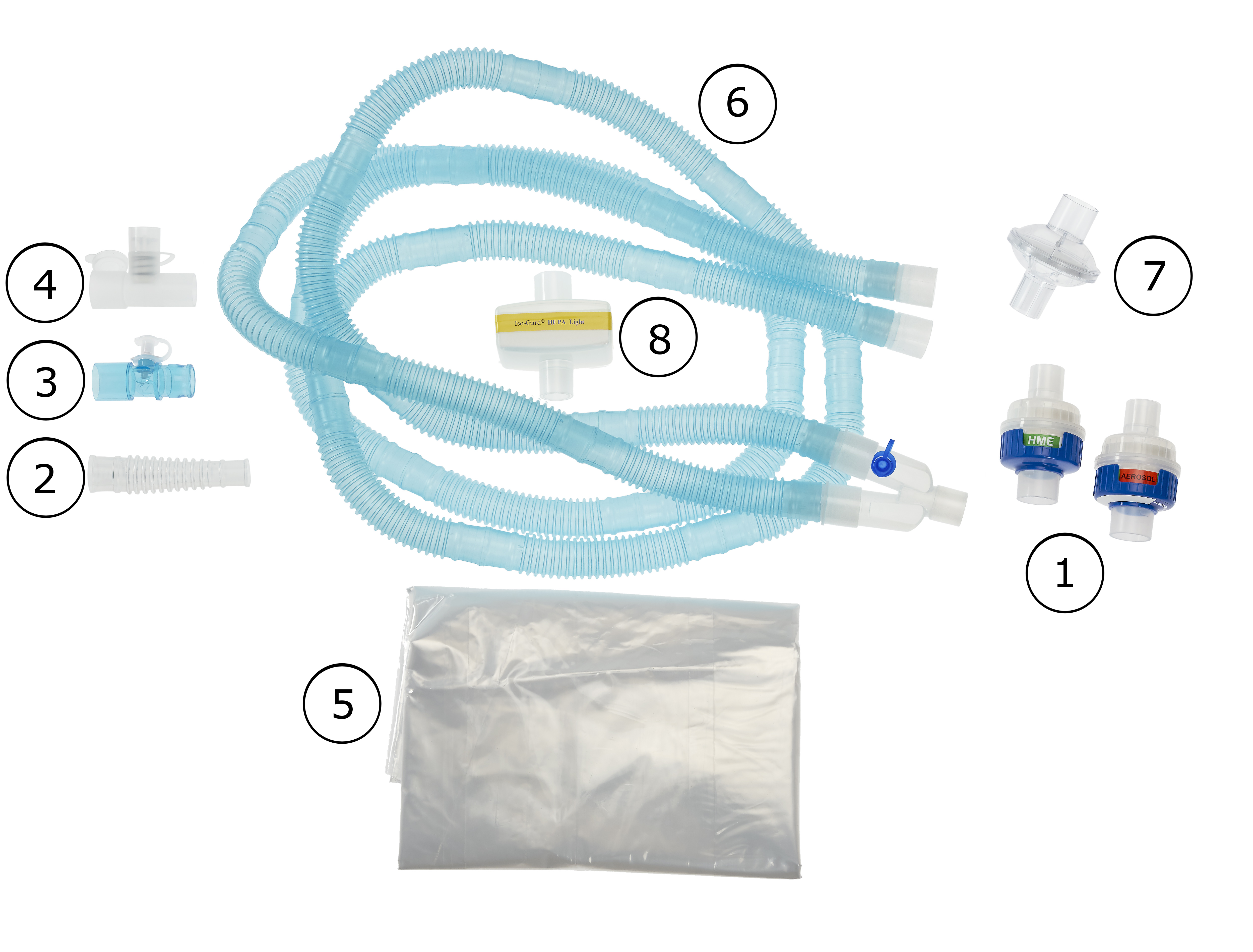

Gibeck® Humid-Flo® Passive Humidification Kit

1 - Gibeck® Humid-Flo® Heat & Moisture Exchanger

5 - Protective Ventilator Cover

2 - Softflex Tube

6 - Breathing Circuit

3 - Dual-Spray MDI Adaptor

7 - Main Flow Bacterial/Viral Filter

4 - In-Line Neb Tee with Valve

8 - Iso-Gard® HEPA Light Filter

Gibeck Humid-Flo Passive Humidification Kit

ITEM
CODE

GIBECK®
HUMID-FLO® HME
(ITEM CODE
RGH912U)

BREATHING
CIRCUIT
(ITEM CODE
1607)

ISO-GARD®
HEPA FILTER
(ITEM CODE
28022)

BACTERIAL/
VIRAL FILTER
(ITEM CODE
RHF605U)

IN-LINE NEB TEE
(ITEM CODE
RHO743U)

MDI ADAPTOR
(ITEM CODE
1759)

FLEX TUBE
(ITEM CODE
1800402)

VENT
COVER

CASE
QTY

19913-72

10

19914-72

10

19917-72

10

19918-72

10

References:

1. Han J, Liu Y. Effect of ventilator circuit changes on ventilator-associated pneumonia: a systematic review and meta-analysis. Respir Care. 2010;55:467-474

MC-001089 REV 2
