Passive Humidification

Main Flow Bacterial/Viral Filter

Item Code RHF605U

• 22 mm ID x 15 mm ID/22 mm OD
• Bacterial efficiency 99.9992%; viral efficiency 99.990%
• Dead space is 45.9 mL
• Flow resistance approximately 1.8 cm H₂0 at 60 LPM

Individually packaged, 50 to a case.

---

Pulmonary Function Bacterial/Viral Filter Kit

Item Code 1603

• 30 mm ID x 30 mm OD
• Bacterial efficiency 96.626%; viral efficiency 96.503%
• Dead space is 130 mL
• Flow resistance approximately 0.25 cm H₂O at 60 LPM

Individually packaged, 50 to a case.

---

Ventilator Main Line Filter Kit

The Main Line Filter Kit is used to connect main-flow supply from ventilator to heated humidifier.

Item Code 1606

• Convenient configuration incorporates Item Code 1605 (Main Flow Filter), tubing and adaptor to accommodate most ventilator setups

Individually packaged, 30 to a case.

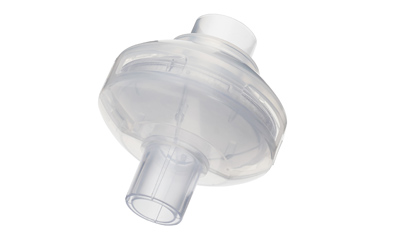

Double Wall Bacterial/Viral Filter

Item Code 2605

• Dead space is 45.9 mL
• Flow resistance approximately 1.87 cm H₂O at 60 LPM

Individually packaged, 20 to a case.
