USA / Product Areas / Anesthesia / Airway Management / Endotracheal Tubes / Reinforced Tubes

Reinforced Endotracheal Tubes

A full breadth of sizes and styles

Rüsch® and Sheridan® reinforced tubes from Teleflex feature a full range of both cuffed and uncuffed tubes. With a stainless-steel, spiral-wound, reinforcing wire within the tube wall and bonded 15mm connectors, these tubes are designed to reduce kinks and disconnects.

Rüsch® Cuffed Reinforced Endotracheal Tubes

Made of PVC

These wire-reinforced tubes feature bonded connectors and high-volume, low-pressure cuffs.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

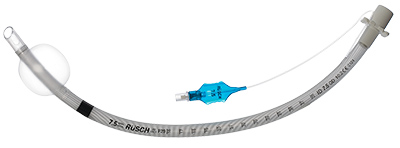

Rüsch® Flex Endotracheal Tube

Ref. Order Size / I.D. O.D. length * murphy Qty
103902035 3.5 mm 5.8 mm 229 mm 5
103902040 4.0 mm 6.3 mm 237 mm 5
103902045 4.5 mm 6.8 mm 259 mm 5
103902050 5.0 mm 7.3 mm 321 mm 5
103902055 5.5 mm 7.8 mm 322 mm 5
103902060 6.0 mm 8.4 mm 329 mm 5
103902065 6.5 mm 9.0 mm 334 mm 5
103902070 7.0 mm 9.6 mm 352 mm 5
103902075 7.5 mm 10.2 mm 356 mm 5
103902080 8.0 mm 10.8 mm 364 mm 5
103902085 8.5 mm 11.3 mm 388 mm 5
103902090 9.0 mm 11.9 mm 398 mm 5
103902095 9.5 mm 12.4 mm 399 mm 5
103902100 10.0 mm 12.9 mm 399 mm 5

* Length without connector

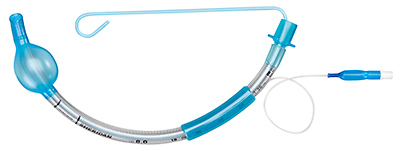

Sheridan® Spiral-Flex® Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length Qty
Cuffed oral
5-12510 5.0 mm 7.5 mm 19.0 mm 216 mm 5
5-12511 5.5 mm 8.2 mm 22.0 mm 221 mm 5
5-12512 6.0 mm 8.8 mm 24.0 mm 240 mm 5
5-12513 6.5 mm 9.4 mm 26.0 mm 260 mm 5
5-12514 7.0 mm 10.0 mm 27.0 mm 279 mm 5
5-12515 7.5 mm 10.6 mm 28.0 mm 295 mm 5
5-12516 8.0 mm 11.4 mm 28.0 mm 300 mm 5
5-12517 8.5 mm 12.0 mm 29.0 mm 321 mm 5
5-12518 9.0 mm 12.6 mm 29.0 mm 321 mm 5
Cuffed oral/nasal
5-12610 5.0 mm 7.5 mm 19.0 mm 246 mm 5
5-12611 5.5 mm 8.2 mm 22.0 mm 276 mm 5
5-12612 6.0 mm 8.8 mm 24.0 mm 286 mm 5
5-12613 6.5 mm 9.4 mm 26.0 mm 297 mm 5
5-12614 7.0 mm 10.0 mm 27.0 mm 306 mm 5
5-12615 7.5 mm 10.6 mm 28.0 mm 318 mm 5
5-12616 8.0 mm 11.4 mm 28.0 mm 327 mm 5
5-12617 8.5 mm 12.0 mm 29.0 mm 327 mm 5
5-12618 9.0 mm 12.6 mm 29.0 mm 327 mm 5

Rüsch® Uncuffed Reinforced Endotracheal Tubes

Made of PVC

These uncuffed tubes feature bonded connectors and are reinforced with a stainless-steel, spiral-wound wire.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

Rüsch® Paediatric Reinforced Endotracheal Tube

Ref. I.D. O.D. length * Qty
103600-000025 2.5 mm 4.1 mm 184.0 mm 2
103600-000030 3.0 mm 4.8 mm 184.5 mm 2
103600-000035 3.5 mm 5.5 mm 184.5 mm 2
103600-000040 4.0 mm 6.0 mm 194.5 mm 2
103600-000045 4.5 mm 6.5 mm 198.0 mm 2
103600-000050 5.0 mm 7.2 mm 208.0 mm 2
103600-000055 5.5 mm 7.7 mm 208.0 mm 2

* length without connector

Sheridan® Spiral-Flex® Reinforced Endotracheal Tube

Ref. Order Size / I.D. O.D. length Qty
5-12906 3.0 mm 4.2 mm 160 mm 5
5-12907 3.5 mm 4.9 mm 181 mm 5
5-12908 4.0 mm 5.5 mm 200 mm 5
5-12909 4.5 mm 6.2 mm 221 mm 5
5-12910 5.0 mm 6.8 mm 241 mm 5
RX only.
