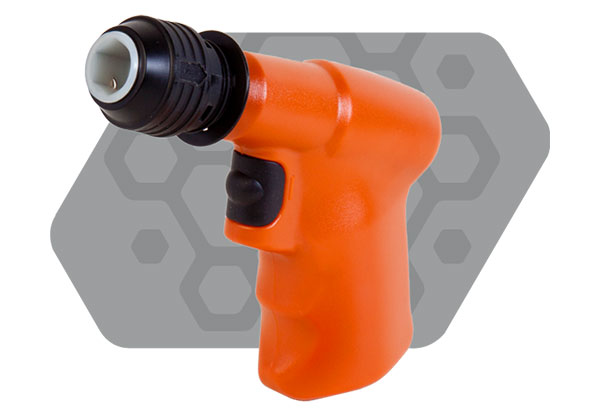

Arrow® OnControl® Powered Bone Access Driver


Power Driver accelerates access.

Powered Driver

Power

Dimensions

Weight

Ref. Number

Sealed Lithium

6.5 in x 4.5 in x 2.5 in (16.5 cm x 11.4 cm x 6.4 cm)

11.1 oz (315 gm)

9401

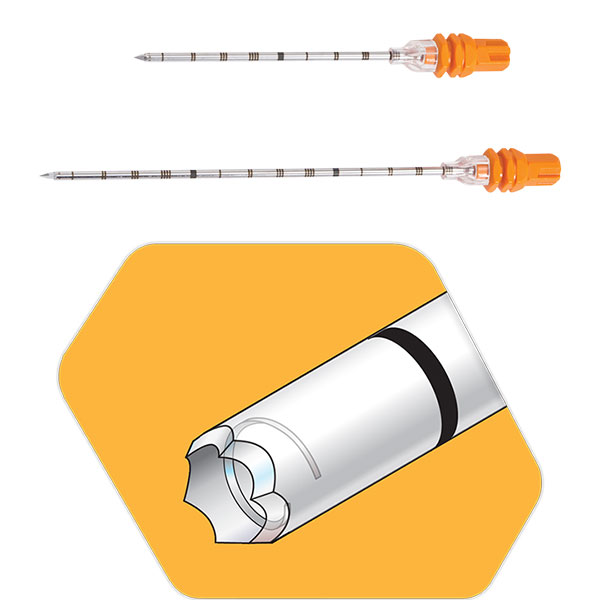

Bone Marrow Biopsy Needle Sets


Patented threaded cannula design captures and holds core specimens from soft bone

Bone Marrow Needles

Length

Needle Gauge

Ref. Number

102 mm

11 ga

9407-VC-006

152 mm

11 ga

9402-VC-006

Arrow® OnControl® Ported Needle

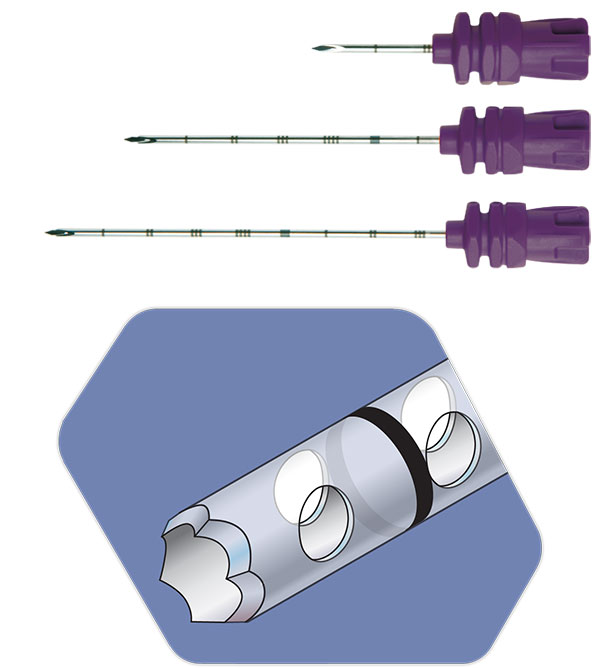

Aspiration Needles

Length

Needle Gauge

Ref. Number

25 mm

15 ga

9425-VC-006

68 mm

15 ga

9468-VC-006

90 mm

15 ga

9490-VC-006

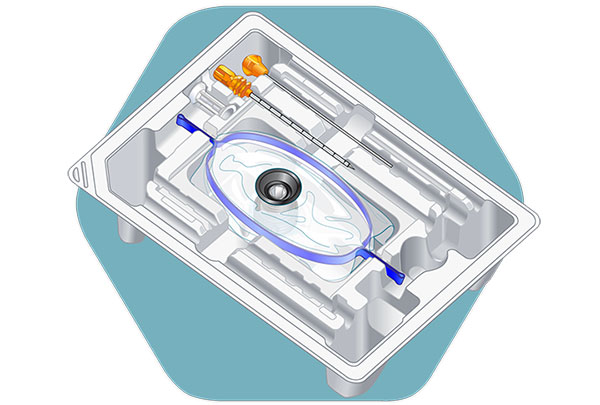

Bone Marrow Biopsy Trays

The Bone Lesion Biopsy Tray contain the instruments needed for multiple, high-quality bone biopsies, from a single cortical penetration.

Bone Lesion Biopsy Tray Components

  • Bone Access Needle Set
  • Bone Access Ejector Rod
  • Bone Lesion Biopsy Needle
  • Bone Lesion Biopsy Ejector Rod
  • Connector with Sterile Sleeve
  • Manual Handle – for minor adjustments
  • Transfer Rod – for marking the access point

Needle Trays

Length

Needle Gauge

Ref. Number

102 mm

11 ga

9408-VC-006

152 mm

11 ga

9411-VC-006

Comprehensive Trays

Length

Needle Gauge

Ref. Number

102 mm

11 ga

9458-CV-006

152 mm

11 ga

9451-CV-006

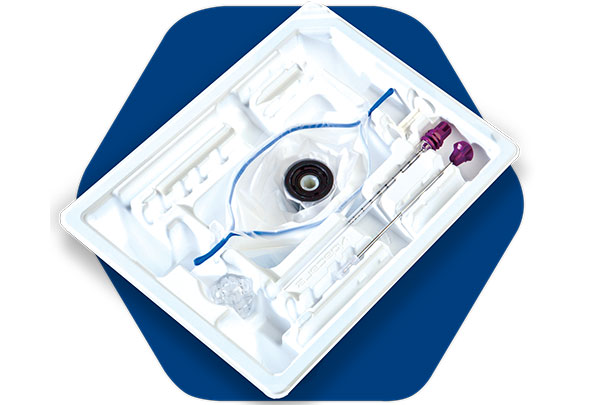

Ported Aspiration Tray

Length

Needle Gauge

Ref. Number

102 mm

11 ga

9471-VC-006
Teleflex, the Teleflex logo, Arrow and OnControl are trademarks or registered trademarks of Teleflex Incorporated or its affiliates. MC-003555
