Passive Humidification

Gibeck® Humid-Flo® HME


19912

Gibeck® Humid-Flo®

The exclusive design of the Gibeck Humid-Flo HME allows it to remain in-line during the first 72 hours of mechanical ventilation, even during aerosol treatments.

  • Reduces circuit breaks aiding clinician adherence to clinical guidelines regarding infection control practices
  • Protects caregivers from exposure to depressurizing circuit spray
  • Allows for the delivery of SVN or MDI aerosols
  • Reduces the need to routinely interrupt ventilation, therefore maintains positive-end expiratory pressure
  • Hygroscopic bacteriostatic microwell paper media provide optimal moisture output with low resistance to flow

Individually packaged, 25 to a case.

Gibeck® Humid-Flo® Heat & Moisture Exchanger

ITEM
CODE

DESCRIPTION

TV RANGE
(ML)

MOISTURE OUTPUT
(MG H2O/L)

WEIGHT
(G)

RESISTANCE
(CMH2O)

DEAD SPACE
(ML)

CASE
QUANTITY

19912

Gibeck Humid-Flo HME

250-1500

30.4, Vt = 1.0 L

43

HME: 1.5 cm H2O
@ 60LPM
Aerosol: 0.90 cm H2O
@ 60LPM

57

25

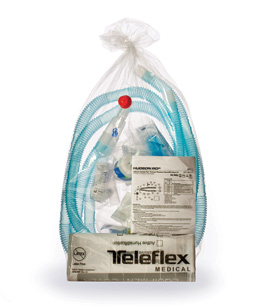

Gibeck® Humid-Flo® 72-Hour Integrated Kit

Verified as an integrated kit that can be used for 3 days with the same high performance and safety specifications as the selected components, the Gibeck Humid-Flo 72-Hour Integrated Kit reduces the frequency of ventilator circuit breaks by allowing all components to remain in-line during the first 72 hours of mechanical ventilation.

  • Promotes best practices for VAP risk reduction
  • Reduces the need to stock multiple SKUs
  • Saves the clinician valuable time during setups
  • Saves time for those ordering the kit
  • Eliminates the hidden costs of buying components separately
  • Available in a variety of different configurations

Gibeck® Humid-Flo® 72-Hour Integrated Kit Components

1 - Gibeck Humid-Flo Heat & Moisture Exchanger

5 - Protective Ventilator Cover

2 - SOFTFLEX Tube

6 - Breathing Circuit

3 - Dual-Spray MDI Adaptor

7 - Main Flow Bacterial/Viral Filter

4 - In-Line Neb Tee with Valve

8 - Iso-Gard® HEPA Light Filter

Gibeck Humid-Flo 72-Hour Integrated Kits

ITEM
CODE

GIBECK®
HUMID-FLO® HME
(ITEM CODE
19912)

BREATHING
CIRCUIT
(ITEM CODE
1607)

ISO-GARD
HEPA FILTER
(ITEM CODE
28022)

BACTERIAL/
VIRAL FILTER
(ITEM CODE
1605)

IN-LINE NEB TEE
(ITEM CODE
1743)

MDI ADAPTOR
(ITEM CODE
1759)

FLEX TUBE
(ITEM CODE
1800402)

VENT
COVER

CASE
QTY

19912-72

10

19913-72

10

19914-72

10

19915-72

10

19916-72

10

19917-72

10

19918-72

10

Teleflex, Aqua+, Dual-Spray, Gibeck, Humid-Flo and Iso-Gard are trademarks or registered trademarks of Teleflex Incorporated or its affiliates, in the U.S. and/or other countries. LA MC-001250
