Standard Endotracheal Tubes

The simple solution for your daily intubations

High-Volume, Low-Pressure Endotracheal Tubes

Designed for Short or Long-Term Intubations

The high-volume, large diameter cuff in both cylindrical and tapered styles is designed to provide a tracheal wall seal at low pressures.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

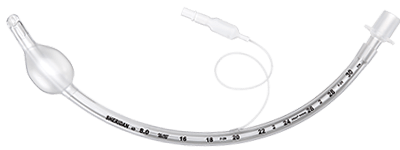

Sheridan/HVT® Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length Qty
5-10310 5.0 mm 6.8 mm 16.0 mm 241 mm 10
5-10311 5.5 mm 7.5 mm 19.0 mm 271 mm 10
5-10312 6.0 mm 8.2 mm 22.0 mm 281 mm 10
5-10313 6.5 mm 8.9 mm 24.0 mm 291 mm 10
5-10314 7.0 mm 9.6 mm 26.0 mm 313 mm 10
5-10315 7.5 mm 10.2 mm 27.0 mm 324 mm 10
5-10316 8.0 mm 10.9 mm 28.0 mm 330 mm 10
5-10317 8.5 mm 11.5 mm 28.0 mm 330 mm 10
5-10318 9.0 mm 12.2 mm 29.0 mm 330 mm 10
5-10320 10.0 mm 13.5 mm 29.0 mm 321 mm 10

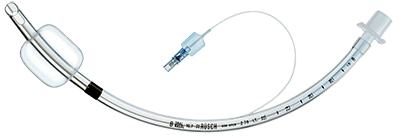

Rüsch® Safety Clear® Plus Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
Murphy Eye
112082050 5.0 mm 6.7 mm 20 mm 250 mm 10
112082055 5.5 mm 7.3 mm 20 mm 280 mm 10
112082060 6.0 mm 8.0 mm 24 mm 290 mm 10
112082065 6.5 mm 8.7 mm 24 mm 300 mm 10
112082070 7.0 mm 9.3 mm 28 mm 320 mm 10
112082075 7.5 mm 10.0 mm 28 mm 330 mm 10
112082080 8.0 mm 10.7 mm 30 mm 340 mm 10
112082085 8.5 mm 11.3 mm 30 mm 345 mm 10
112082090 9.0 mm 12.0 mm 34 mm 350 mm 10
112082095 9.5 mm 12.7 mm 34 mm 350 mm 10
112082100 10.0 mm 13.3 mm 34 mm 350 mm 10
Magill
112080050 5.0 mm 6.7 mm 20 mm 250 mm 10
112080055 5.5 mm 7.3 mm 20 mm 280 mm 10
112080060 6.0 mm 8.0 mm 24 mm 290 mm 10
112080065 6.5 mm 8.7 mm 24 mm 300 mm 10
112080070 7.0 mm 9.3 mm 28 mm 320 mm 10
112080075 7.5 mm 10.0 mm 28 mm 330 mm 10
112080080 8.0 mm 10.7 mm 30 mm 340 mm 10
112080085 8.5 mm 11.3 mm 30 mm 345 mm 10
112080090 9.0 mm 12.0 mm 34 mm 350 mm 10
112080095 9.5 mm 12.7 mm 34 mm 350 mm 10
112080100 10.0 mm 13.3 mm 34 mm 350 mm 10

* Length without connector

Low-Profile Endotracheal Tubes

Designed for Short-Term Intubations

By facilitating intubation and increasing visualization, the Rüsch® and Sheridan® low-volume, low-pressure cuffs are designed for short-term intubations.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

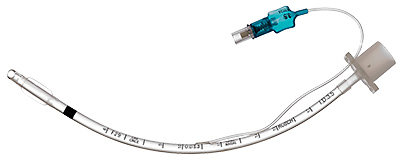

Rüsch® Super Safety Clear™ Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
112480025 2.5 mm 4.0 mm 8.0 mm 160 mm 10
112480030 3.0 mm 5.0 mm 8.0 mm 170 mm 10
112480035 3.5 mm 5.3 mm 8.0 mm 190 mm 10
112480040 4.0 mm 6.0 mm 10.5 mm 220 mm 10
112480045 4.5 mm 6.3 mm 10.5 mm 230 mm 10

* Length without connector

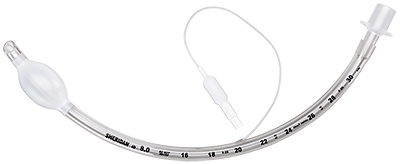

Sheridan/CF® Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
CF Magill Type
5-10206 3.0 mm 4.2 mm 7.3 mm 160 mm 10
5-10208 4.0 mm 5.5 mm 8.9 mm 200 mm 10
5-10210 5.0 mm 6.8 mm 13.0 mm 241 mm 10
5-10212 6.0 mm 8.2 mm 16.0 mm 281 mm 10
5-10213 6.5 mm 8.9 mm 19.0 mm 291 mm 10
5-10214 7.0 mm 9.6 mm 19.0 mm 313 mm 10
5-10215 7.5 mm 10.2 mm 24.0 mm 324 mm 10
5-10216 8.0 mm 10.9 mm 24.0 mm 330 mm 10
5-10217 8.5 mm 11.5 mm 27.0 mm 330 mm 10
5-10218 9.0 mm 12.2 mm 27.0 mm 330 mm 10
5-10219 9.5 mm 12.9 mm 26.0 mm 321 mm 10
5-10220 10.0 mm 13.5 mm 27.0 mm 321 mm 10
CF Murphy Eye
5-10106 3.0 mm 4.2 mm 7.3 mm 160 mm 10
5-10107 3.5 mm 4.9 mm 8.9 mm 181 mm 10
5-10108 4.0 mm 5.5 mm 8.9 mm 200 mm 10
5-10109 4.5 mm 6.2 mm 11.0 mm 221 mm 10
5-10110 5.0 mm 6.8 mm 13.0 mm 241 mm 10
5-10111 5.5 mm 7.5 mm 16.0 mm 271 mm 10
5-10112 6.0 mm 8.2 mm 16.0 mm 281 mm 10
5-10113 6.5 mm 8.9 mm 19.0 mm 291 mm 10
5-10114 7.0 mm 9.6 mm 19.0 mm 313 mm 10
5-10115 7.5 mm 10.2 mm 24.0 mm 324 mm 10
5-10116 8.0 mm 10.9 mm 24.0 mm 330 mm 10
5-10117 8.5 mm 11.5 mm 27.0 mm 330 mm 10
5-10118 9.0 mm 12.2 mm 27.0 mm 330 mm 10
5-10119 9.5 mm 12.9 mm 26.0 mm 321 mm 10
5-10120 10.0 mm 13.5 mm 27.0 mm 321 mm 10

* Length without connector

Uncuffed Endotracheal Tubes

Designed for smaller airways.

Special depth lines at the distal tip indicate the depth of intubation. The smooth, molded, gently cupped tip eases intubation, while the tube is designed to soften at body temperature to conform to the airway anatomy.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

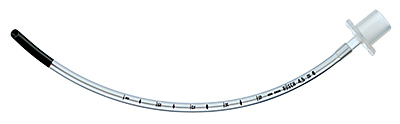

Rüsch® Safety Clear® Endotracheal Tube

Ref. Order Size / I.D. O.D. length* length black tip Qty
100382025 2.5 mm 3.3 mm 160 mm 20 mm 10
100382030 3.0 mm 4.0 mm 170 mm 20 mm 10
100382035 3.5 mm 4.7 mm 190 mm 20 mm 10
100382040 4.0 mm 5.3 mm 210 mm 30 mm 10
100382045 4.5 mm 6.0 mm 230 mm 30 mm 10
100382050 5.0 mm 6.7 mm 250 mm 40 mm 10
100382055 5.5 mm 7.3 mm 280 mm 40 mm 10
100382060 6.0 mm 8.0 mm 290 mm 40 mm 10
100382065 6.5 mm 8.7 mm 300 mm 40 mm 10

* Length without connector

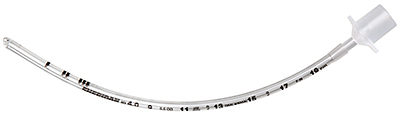

Sheridan® Uncuffed Endotracheal Tube

Ref. Order Size / I.D. O.D. length Qty
5-10404 2.0 mm 2.9 mm 141 mm 10
5-10405 2.5 mm 3.6 mm 141 mm 10
5-10406 3.0 mm 4.2 mm 160 mm 10
5-10407 3.5 mm 4.9 mm 181 mm 10
5-10408 4.0 mm 5.5 mm 200 mm 10
5-10409 4.5 mm 6.2 mm 221 mm 10
5-10410 5.0 mm 6.8 mm 241 mm 10
5-10411 5.5 mm 7.5 mm 271 mm 10
5-10412 6.0 mm 8.2 mm 281 mm 10
5-10413 6.5 mm 8.9 mm 291 mm 10
5-10414 7.0 mm 9.6 mm 313 mm 10

Pre-Styletted Endotracheal Tubes

Designed to ease workflow and minimize waste

Rüsch® and Sheridan® pre-styletted tubes use our standard tubes and stylets. Packaged together, preassembled and ready to use, saving time and space as compared to standalone stylets and endotracheal tubes. Available in both cuffed and uncuffed versions.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

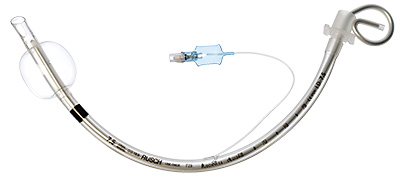

Rüsch® Flexi-Set™ Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
Cuffed Version
504550 5.0 mm 6.7 mm 13.0 mm 250 mm 10
504555 5.5 mm 7.3 mm 16.5 mm 280 mm 10
504560 6.0 mm 8.0 mm 18.5 mm 290 mm 10
504565 6.5 mm 8.7 mm 20.5 mm 300 mm 10
504570 7.0 mm 9.3 mm 24.0 mm 320 mm 10
504575 7.5 mm 10.0 mm 26.0 mm 330 mm 10
504580 8.0 mm 10.7 mm 26.0 mm 340 mm 10
504585 8.5 mm 11.3 mm 28.0 mm 345 mm 10
504590 9.0 mm 12.0 mm 28.0 mm 350 mm 10
Uncuffed Version
506525 2.5 mm 3.3 mm   160 mm 10
506530 3.0 mm 4.0 mm   170 mm 10
506535 3.5 mm 4.7 mm   190 mm 10
506540 4.0 mm 5.3 mm   210 mm 10
506545 4.5 mm 6.0 mm   230 mm 10
506550 5.0 mm 6.7 mm   250 mm 10

* Length without connector

Rüsch® Slick-Set® Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
Cuffed Version
170050 5.0 mm 6.7 mm 20 mm 250 mm 10
170055 5.5 mm 7.3 mm 20 mm 280 mm 10
170060 6.0 mm 8.0 mm 24 mm 290 mm 10
170065 6.5 mm 8.7 mm 24 mm 300 mm 10
170070 7.0 mm 9.3 mm 28 mm 320 mm 10
170075 7.5 mm 10.0 mm 28 mm 330 mm 10
170080 8.0 mm 10.7 mm 30 mm 340 mm 10
170085 8.5 mm 11.3 mm 30 mm 345 mm 10
170090 9.0 mm 12.0 mm 34 mm 350 mm 10
170095 9.5 mm 12.7 mm 34 mm 350 mm 10
1700100 10.0 mm 13.3 mm 34 mm 350 mm 10
Uncuffed Version
170120 2.0 mm 3.0 mm   150 mm 10
170125 2.5 mm 3.3 mm   160 mm 10
170130 3.0 mm 4.0 mm   170 mm 10
170135 3.5 mm 4.7 mm   190 mm 10
170140 4.0 mm 5.3 mm   210 mm 10
170145 4.5 mm 6.0 mm   230 mm 10
170150 5.0 mm 6.7 mm   250 mm 10
170155 5.5 mm 7.3 mm   280 mm 10

* Length without connector

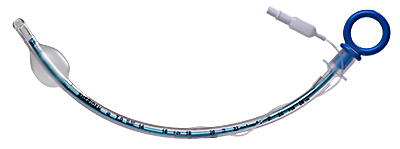

Sheridan® EZ-Endo® Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
Cuffed Version
5-22510 5.0 mm 6.8 mm 16 mm 241 mm 10
5-22511 5.5 mm 7.5 mm 19 mm 271 mm 10
5-22512 6.0 mm 8.2 mm 22 mm 281 mm 10
5-22513 6.5 mm 8.9 mm 24 mm 291 mm 10
5-22514 7.0 mm 9.6 mm 26 mm 313 mm 10
5-22515 7.5 mm 10.2 mm 27 mm 324 mm 10
5-22516 8.0 mm 10.9 mm 28 mm 330 mm 10
5-22517 8.5 mm 11.5 mm 28 mm 330 mm 10
5-22518 9.0 mm 12.2 mm 29 mm 330 mm 10

* Length without connector
RX only.
