Preformed Endotracheal Tubes

A full breadth of sizes and styles

Rüsch® and Sheridan® preformed tubes from Teleflex feature a full range of both cuffed and uncuffed tubes.

These tubes are designed to reduce kinks and disconnects, by removing the circuits and connectors from the surgical field.

Preformed Oral Cuffed Endotracheal Tubes

Made of PVC with high volume, low pressure cuff

These anatomically shaped tubes have a high-volume, low-pressure cuff in both cylindricaland tapered styles and are designed to provide an optimal seal at low pressures.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

Rüsch® AGT Oral Cuffed Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length* Qty
111780035 3.5 mm 5.3 mm 11 mm 120 mm 10
111780040 4.0 mm 6.0 mm 11 mm 130 mm 10
111780045 4.5 mm 6.3 mm 13 mm 145 mm 10
111780050 5.0 mm 6.7 mm 13 mm 155 mm 10
111780055 5.5 mm 7.3 mm 16 mm 165 mm 10
111780060 6.0 mm 8.0 mm 18 mm 180 mm 10
111780065 6.5 mm 8.7 mm 20 mm 190 mm 10
111780070 7.0 mm 9.3 mm 24 mm 200 mm 10
111780075 7.5 mm 10.0 mm 26 mm 210 mm 10
111780080 8.0 mm 10.7 mm 26 mm 220 mm 10
111780085 8.5 mm 11.3 mm 28 mm 230 mm 10
111780090 9.0 mm 12.0 mm 28 mm 240 mm 10

* Length without connector

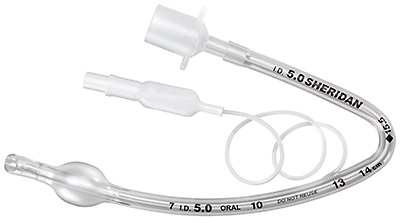

Sheridan® Preformed Oral Cuffed Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length Qty
5-22208 4.0 mm 5.5 mm 10.0 mm 205 mm
5-22209 4.5 mm 6.2 mm 12.0 mm 228 mm
5-22210 5.0 mm 6.8 mm 15.0 mm 245 mm
5-22211 5.5 mm 7.6 mm 18.0 mm 256 mm
5-22212 6.0 mm 8.2 mm 18.0 mm 271 mm
5-22213 6.5 mm 8.9 mm 23.0 mm 281 mm
5-22214 7.0 mm 9.6 mm 26.0 mm 305 mm
5-22215 7.5 mm 10.2 mm 26.0 mm 318 mm
5-22216 8.0 mm 10.9 mm 29.0 mm 339 mm
5-22217 8.5 mm 11.5 mm 28.0 mm 352 mm
5-22218 9.0 mm 12.2 mm 31.0 mm 371 mm

Preformed Nasal Cuffed Endotracheal Tubes

Made of PVC with high volume, low pressure cuff

These anatomically shaped tubes have a high-volume, low-pressure cuff in both cylindrical and tapered styles and are designed to provide an optimal seal at low pressures.

  • Single-use
  • Sterile
  • Not made with natural rubber latex.

Rüsch® AGT Nasal Cuffed Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø length 1 total length* Qty
111781035 3.5 mm 5.3 mm 11 mm 160 mm 225 mm 10
111781040 4.0 mm 6.0 mm 11 mm 185 mm 255 mm 10
111781045 4.5 mm 6.3 mm 13 mm 220 mm 295 mm 10
111781050 5.0 mm 6.7 mm 13 mm 235 mm 310 mm 10
111781055 5.5 mm 7.3 mm 16 mm 245 mm 325 mm 10
111781060 6.0 mm 8.0 mm 18 mm 260 mm 345 mm 10
111781065 6.5 mm 8.7 mm 20 mm 270 mm 355 mm 10
111781070 7.0 mm 9.3 mm 24 mm 280 mm 365 mm 10
111781075 7.5 mm 10.0 mm 26 mm 290 mm 375 mm 10
111781080 8.0 mm 10.7 mm 26 mm 300 mm 385 mm 10

* Length without connector

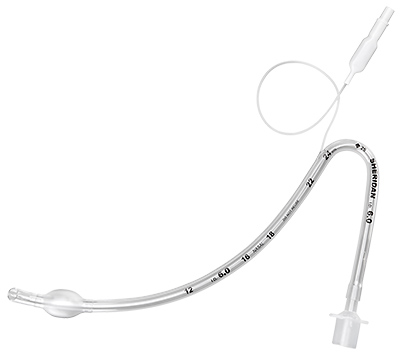

Sheridan® Preformed Nasal Cuffed Endotracheal Tube

Ref. Order Size / I.D. O.D. Cuff Ø total length Qty
5-22312 6.0 mm 8.2 mm 18.0 mm 381 mm 10
5-22313 6.5 mm 8.9 mm 23.0 mm 390 mm 10
5-22314 7.0 mm 9.6 mm 26.0 mm 401 mm 10
5-22315 7.5 mm 10.2 mm 26.0 mm 421 mm 10
5-22316 8.0 mm 10.9 mm 29.0 mm 421 mm 10

Preformed Oral Uncuffed Endotracheal Tubes

Made of PVC with high volume, low pressure cuff

These anatomically shaped tubes have a high-volume, low-pressure cuff in both cylindrical and tapered styles and are designed to provide an optimal seal at low pressures.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

Rüsch® AGT Oral Uncuffed Endotracheal Tube

Ref. Order Size / I.D. O.D. O.D. (CH.) length* Qty
100180030 3.0 mm 4.0 mm Ch. 12 105 mm 10
100180035 3.5 mm 4.7 mm Ch. 14 120 mm 10
100180040 4.0 mm 5.3 mm Ch. 16 130 mm 10
100180045 4.5 mm 6.0 mm Ch. 18 145 mm 10
100180050 5.0 mm 6.7 mm Ch. 20 155 mm 10
100180055 5.5 mm 7.3 mm Ch. 22 165 mm 10
100180060 6.0 mm 8.0 mm Ch. 24 180 mm 10
100180065 6.5 mm 8.7 mm Ch. 26 190 mm 10
100180070 7.0 mm 9.3 mm Ch. 28 200 mm 10

* Length without connector

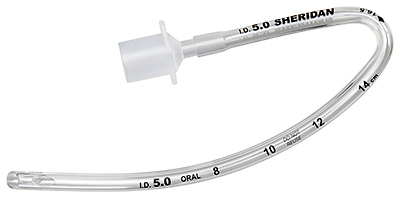

Sheridan® Preformed Oral Uncuffed Endotracheal Tube

Ref. Order Size / I.D. O.D. length Qty
5-22006 3.0 mm 4.2 mm 179 mm
5-22007 3.5 mm 4.9 mm 202 mm
5-22008 4.0 mm 5.5 mm 206 mm
5-22009 4.5 mm 6.2 mm 237 mm
5-22010 5.0 mm 6.9 mm 259 mm
5-22011 5.5 mm 7.6 mm 259 mm
5-22012 6.0 mm 8.2 mm 270 mm
5-22013 6.5 mm 8.9 mm 281 mm
5-22014 7.0 mm 9.6 mm 305 mm

Preformed Nasal Uncuffed Endotracheal Tubes

Made of PVC

These anatomically shaped tubes feature bold marks at the center of the bend with distance to distal tip indicated.

  • Single-use
  • Sterile
  • Not made with natural rubber latex

Rüsch® AGT Nasal Uncuffed Endotracheal Tube

Ref. Order Size / I.D. O.D. O.D. (CH.) length* Qty
100181030 3.0 mm 4.0 mm Ch. 12 115 mm 10
100181040 4.0 mm 5.3 mm Ch. 16 155 mm 10
100181045 4.5 mm 6.0 mm Ch. 18 180 mm 10
100181050 5.0 mm 6.7 mm Ch. 20 190 mm 10
100181055 5.5 mm 7.3 mm Ch. 22 195 mm 10
100181060 6.0 mm 8.0 mm Ch. 24 205 mm 10
100181065 6.5 mm 8.7 mm Ch. 26 210 mm 10

* Length without connector

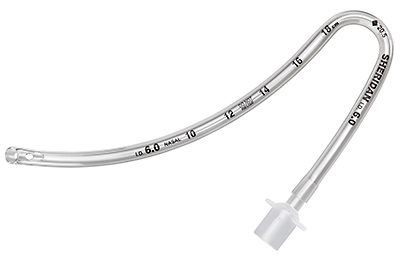

Sheridan® Preformed Nasal Uncuffed Endotracheal Tube

Ref. Order Size / I.D. O.D. length Qty
5-22106 3.0 mm 4.2 mm 190 mm
5-22107 3.5 mm 4.9 mm 218 mm
5-22108 4.0 mm 5.5 mm 234 mm
5-22109 4.5 mm 6.2 mm 265 mm
5-22110 5.0 mm 6.9 mm 286 mm
5-22111 5.5 mm 7.6 mm 284 mm
5-22112 6.0 mm 8.2 mm 330 mm
5-22113 6.5 mm 8.9 mm 336 mm
5-22114 7.0 mm 9.6 mm 336 mm
RX only.
