Europe, Middle East, Africa / Product Areas / Military - Federal / Airway Management / Supraglottic Airways

Airway Management

Supraglottic Airways

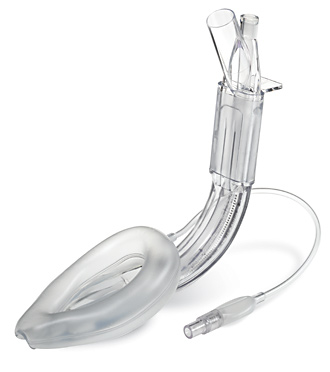

LMA® Supreme Airway

LMA Supreme Airway

When Lives Depend on You, Depend on LMA® Airways.

With precious few seconds available to choose a rescue airway device, the decision is a critical one. This leading single-use, gastric access laryngeal mask airway with a built-in drain tube, the LMA® Supreme Airway is the airway of choice.

Item
Number		 Mask Size Patient Weight MAXIMUM CUFF VOLUME (AIR)* MAXIMUM SIZE OG TUBE QTY/CASE
175010 Size 1 up to 5 kg up to 5 ML 6 French 10
175015 Size 1½ 5 –10 kg up to 8 ML 6 French 10
175020 Size 2 10 – 20 kg up to 12 ML 10 French 10
175025 Size 2½ 20 – 30 kg up to 20 ML 10 French 10
175030 Size 3 30 – 50 kg up to 30 ML 14 French 10
175040 Size 4 50 – 70 kg up to 45 ML 14 French 10
175050 Size 5 70 – 100 kg up to 45 ML 14 French 10
OG= orogastric tube
* These are maximum volumes that should never be exceeded. It is recommended the cuff be inflated to 60 cm H20 intracuff pressure.

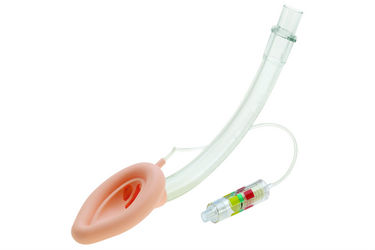

LMA® Unique (Silicone Cuff) Airway

LMA Unique (Silicone Cuff) Airway

The LMA® Unique (Silicone Cuff) Airway from Teleflex combines all of the features of our LMA® Unique Single-use Airway with the benefits of a silicone cuff, including higher seal pressures and conformity to the patient’s anatomy. Its versatility is welcomed in an extensive range of applications, including on emergency vehicles as a resuscitation device when intubation is not possible.

ITEM NUMBER DESCRIPTION MASK
SIZE		 PATIENT WEIGHT MAX CUFF
VOLUME (AIR)* 		MAX INTRACUFF
PRESSURE		 QTY/CASE
105200-000010 With Cuff Pilot Technology 1 Up to 5 kg up to 4 ml 60 cm H20 10
105200-000015 With Cuff Pilot Technology 1.5 5-10 kg up to 7 ml 60 cm H20 10
105200-000020 With Cuff Pilot Technology 2 10-20 kg up to 10 ml 60 cm H20 10
105200-000025 With Cuff Pilot Technology 2.5 20-30 kg up to 14 ml 60 cm H20 10
105200-000030 With Cuff Pilot Technology 3 30-50 kg up to 20 ml 60 cm H20 10
105200-000040 With Cuff Pilot Technology 4 50-70 kg up to 30 ml 60 cm H20 10
105200-000050 With Cuff Pilot Technology 5 70-100 kg up to 40 ml 60 cm H20 10
*These are maximum volumes that should never be exceeded. It is recommended that the cuff be inflated to a maximum of 60 cm H20 intracuff pressure.

LMA® Fastrach SU Airway

LMA Fastrach Airway

Intubation Airway

Made of PVC.

Designed for the anticipated or unanticipated difficult airway situation and for cardiopulmonary resuscitation, the LMA® Fastrach Airway facilitates continuous ventilation and intubation. The rigid handle of the device facilitates one-handed insertion, removal and adjustment to enhance oxygenation and alignment with the glottis.

  • Not made with natural rubber latex
  • Sterile
  • Single-use

REF. SIZE Patient
Weight		 MAXIMUM CUFF
VOLUME (AIR)*		 LARGEST ETT ID** QTY
135130 3 Children 30–50 kg 20 ml 6.0 mm 6.5 mm 7.0 mm 7.5 mm 8.0 mm 10
135140 4 Adults 50–70 kg 30 ml 6.0 mm 6.5 mm 7.0 mm 7.5 mm 8.0 mm 10
135150 5 Adults 70–100 kg 40 ml 6.0 mm 6.5 mm 7.0 mm 7.5 mm 8.0 mm 10
*These are maximum volumes that should never be exceeded. It is recommended that the cuff be inflated to a maximum of 60 cm H2O intracuff pressure.
** All sizes (6, 6.5, 7, 7.5 and 8) of reusable LMA® Fastrach ETT are compatible with LMA® Fastrach and LMA® Fastrach single-use Airways. However, only sizes 6, 6.5 and 7 of LMA® Fastrach ETT single-use are compatible with LMA® Fastrach and LMA® Fastrach single-use Airways.

LMA® Fastrach Airway

LMA Fastrach Airway

Intubation Airway

Made of silicone.

  • Not made with natural rubber latex
  • Reusable

REF. SIZE Patient
Weight		 MAXIMUM CUFF
VOLUME (AIR)*		 LARGEST ETT ID** QTY
130030 3 Children 30–50 kg 20 ml 6.0 mm 6.5 mm 7.0 mm 7.5 mm 8.0 mm 1
130040 4 Adults 50–70 kg 30 ml 6.0 mm 6.5 mm 7.0 mm 7.5 mm 8.0 mm 1
130050 5 Adults 70–100 kg 40 ml 6.0 mm 6.5 mm 7.0 mm 7.5 mm 8.0 mm 1
* These are maximum volumes that should never be exceeded. It is recommended that the cuff be inflated to a maximum of 60 cm H2O intracuff pressure.
** All sizes (6, 6.5, 7, 7.5 and 8) of reusable LMA® Fastrach ETT are compatible with LMA® Fastrach and LMA® Fastrach single-use Airways. However, only sizes 6, 6.5 and 7 of LMA® Fastrach ETT single-use are compatible with LMA® Fastrach and LMA® Fastrach single-use Airways.

LMA® Fastrach ETT SU

LMA Fastrach Airway

The LMA® Fastrach ETT is an endotracheal tube designed to be compatible with the LMA® Fastrach and LMA® Fastrach single-use Airways.

LMA® Fastrach ETT SU
PVC ETT with stabilising rod.

  • Not made with natural rubber latex
  • Sterile
  • Single-use

REF. TUBE SIZE** QTY
136060 6.0 mm 10
136065 6.5 mm 10
136070 7.0 mm 10
136075 7.5 mm 10
136080 8.0 mm 10
** All sizes (6, 6.5, 7, 7.5 and 8) of reusable LMA® Fastrach ETT are compatible with LMA® Fastrach and LMA® Fastrach single-use. However, only sizes 6, 6.5 and 7 of LMA® Fastrach ETT single-use are compatible with LMA® Fastrach and LMA® Fastrach single-use.

LMA® Fastrach ETT

LMA Fastrach Airway

LMA® Fastrach ETT
Silicone ETT.

  • Not made with natural rubber latex
  • Reusable

REF. TUBE SIZE** QTY
131060 6.0 mm 1
131065 6.5 mm 1
131070 7.0 mm 1
131075 7.5 mm 1
131080 8.0 mm 1
** All sizes (6, 6.5, 7, 7.5 and 8) of reusable LMA® Fastrach ETT are compatible with LMA® Fastrach and LMA® Fastrach single-use. However, only sizes 6, 6.5 and 7 of LMA® Fastrach ETT single-use are compatible with LMA® Fastrach and LMA® Fastrach single-use.
LMA Fastrach Airway

LMA® Fastrach Stabiliser Rod
100% silicone.

  • Reusable

Features

  • Supraglottic, non-invasive airway management device
  • Comprised of three main components; Airway Tube, Mask and Inflation Line
  • Masks are designed to conform to the contours of the hypopharynx with the bowl of the mask facing the laryngeal opening

Patients

Designed to maintain/temporize an airway in:

  • Patients with immediate need of an airway
  • Patients with failed tracheal intubation or for whom tracheal intubation is not an option
  • Patients for whom the benefit of establishing an airway outweighs the risk of regurgitation and/or aspiration
