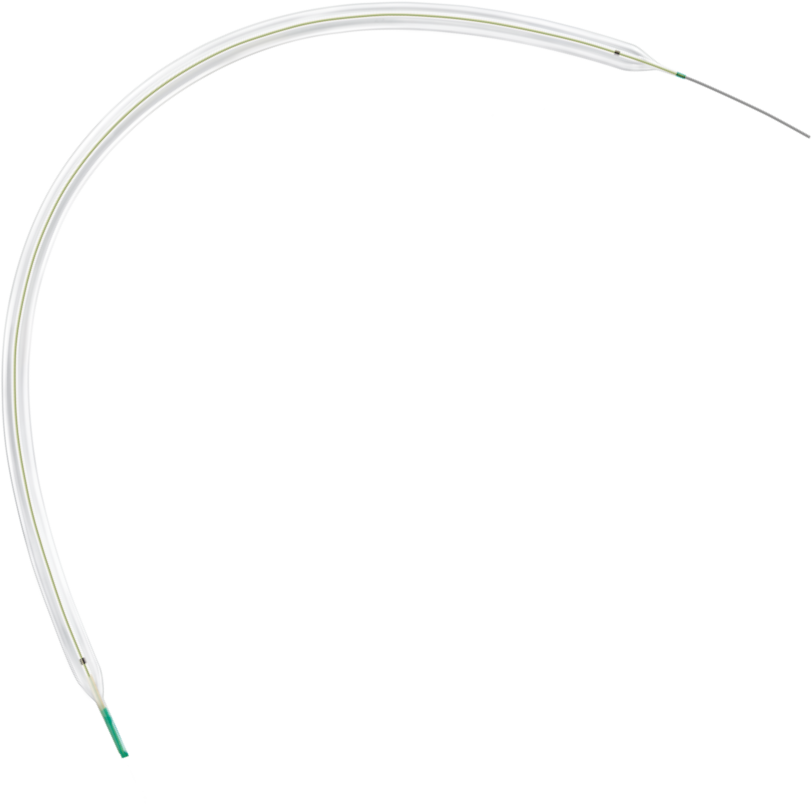

Passeo™-18 PTA Balloon Catheter

Passeo™-18 is indicated to dilate stenosis in the femoral, popliteal and infrapopliteal arteries and for the treatment of obstructive lesions of native or synthetic arteriovenous dialysis fistulae.*


Product Highlights

High pushability

Coaxial shaft design with up to 9% higher pushability compared to leading competitors.1

Controlled compliance

Predictable radial balloon expansion to minimize the risk of dissection.2

Low profile and wide range of sizes

Wide balloon diameters up to ø7.0mm and long balloon lengths up to 200mm.2

Introducer Sheath
Catheter type OTW
Recommended guide wire 0.018”
Tip Short and tapered, colored
Balloon material SCP (Semi-Crystalline Polymer), controlled compliance (4 - 8 %)
Balloon folding 5-fold
Balloon coating Hydrophobic patchwork coating
Balloon markers 2 swaged markers (zero profile)
Sizes ø 2.0 - 7.0 mm; L: 20 - 200 mm
Shaft 3.8F, 3.9F (ø 6.0 /7.0 mm x 170 - 200 mm); coaxial design
Usable length 90, 130 and 150 cm
  Balloon diameter x length (mm)
    ø 2.0 x
20-170		 ø 2.0 x
200		 ø 2.5 x
20-170		 ø 2.5 x
200		 ø 3.0 x
20-170		 ø 3.0 x
200		 ø 3.5 x
20-170		 ø 3.5 x
200
Nominal Pressure (NP) atm* 6 6 6 6 6 6 6 6
ø (mm) 2 2 2.5 2.5 3 3 3.5 3.5
Rated Burst (RBP) atm* 15 14 15 14 15 14 15 14
ø (mm) 2.1 2.1 2.6 2.6 3.2 3.2 3.7 3.7
  Balloon diameter x length (mm)
    ø 4.0 x
20-150		 ø 4.0 x
170-200		 ø 5.0 x
20-120		 ø 5.0 x
150		 ø 5.0 x
170-200		 ø 6.0 x
20-200		 ø 7.0 x
20-200
Nominal Pressure (NP) atm* 6 6 6 6 6 6 6
ø (mm) 4 4 5 5 5 6 7
Rated Burst (RBP) atm* 15 13 15 12 13 12 12
ø (mm) 4.3 4.2 5.3 5.2 5.2 6.2 7.3
*1 atm = 1.013 bar
  Catheter length (cm) Balloon ø (mm) Balloon Length (mm)
  20 40 60 80 120 150 170 200
4F 90 2 366098 366099 366100 366104 366105 366106 366114 376276
90 2.5 357451 357458 366101 357469 357476 366107 357483 376277
90 3 357452 357459 366102 357470 357477 366108 357484 376278
90 3.5 357453 357460 366103 357471 357478 366109 357485 376279
5F 90 4 357454 357461 357465 357472 357479 366110 376272 376280
90 5 357455 357462 357466 357473 357480 366111 376273 376281
90 6 357456 357463 357467 357474 357481 366112 376274 376282
90 7 357457 357464 357468 357475 357482 366113 376275 376283
  Catheter length (cm) Balloon ø (mm) Balloon Length (mm)
4F 150 2 366115 366118 366119 366123 366126  366129 366137 376296
130 2.5 357486 357491 366120 357502 357507 366130 357512 376297
130 3 357487 357492 366121 357503 357508 366131 357513 376298
130 3.5 357488 357493 366122 357504 357509 366132 357514 376299
5F 130 4 357489 357494 357498 357505 357510 366133 376292 376300
130 5 357490 357495 357499 357506 357511 366134 376293 376301
130 6 366116 357496 357500 366124 366127 366135 376294 376302
130 7 366117 357497 357501 366125 366128 366136 376295 376303

IFU Link

Refer to this IFU link for a copy of the Instructions for Use and for a complete listing of the indications, contraindications, warnings and precautions.

References:

*Indication as per IFU.

1. Data on file. Compared to leading competitors 3.0 mm diameter balloon size; 2.Data on file.
