Europe, Middle East, Africa / Product Areas / Interventional Cardiology/Radiology / Coronary Interventions / Pantera Pro

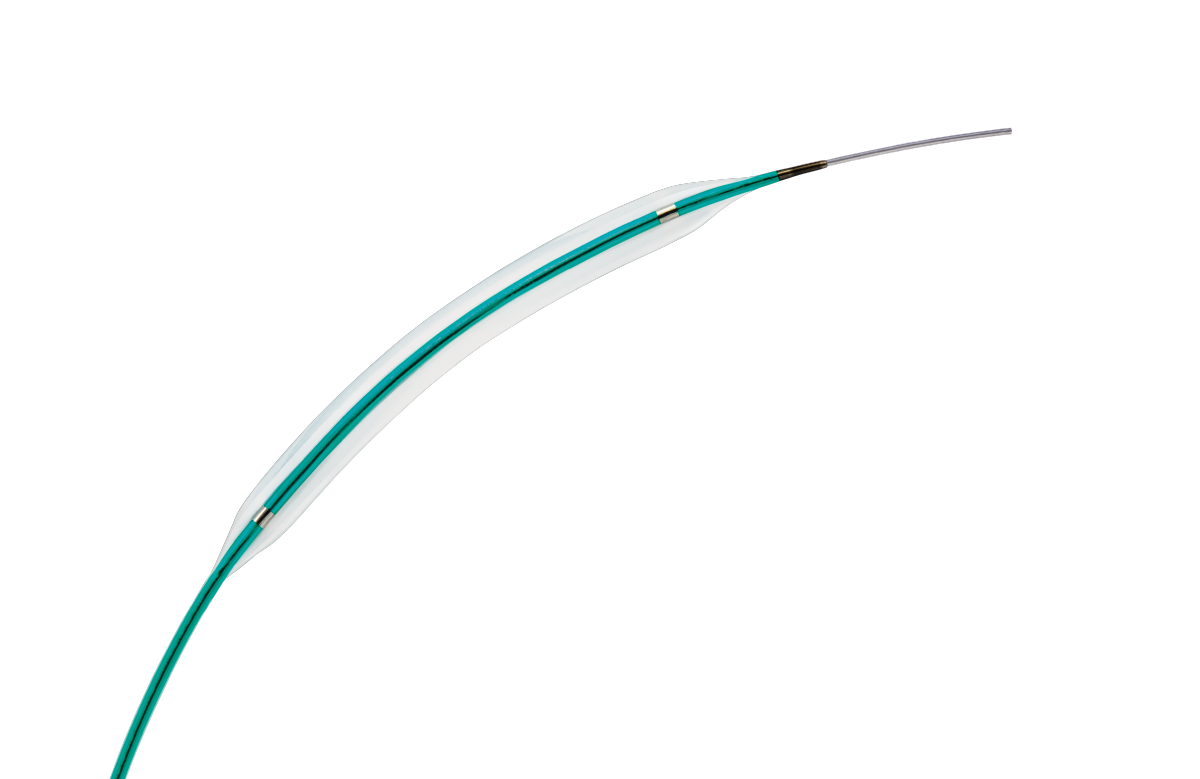

Pantera^™ Pro SC Balloon Catheter

Semi-Compliant Balloon Catheter

Indicated for dilatation of coronary artery or bypass graft stenosis.^a

Product Highlights

Better Crossability¹

Slim shoulders coupled with hydrophilic coating^b facilitate better crossing¹

43% less friction² during simultaneous use

Reduced distal shaft diameter for improved 6F simultaneous use compatibility^c,3

38% more pushability⁴

Enhanced Force Transmission (EFT) shaft for unmatched pushability³

Proximal Shaft
Design	Hypotube design
Diameter	2.0F
Shaft markers	92 cm and 102 cm from tip

Distal shaft
Guiding catheter	5F (min. I.D. 0.056” / 1.42 mm)
Guide wire diameter	0.014”
Lesion entry proﬁle	0.017”
Usable length	140 cm
Balloon material	Semi Crystalline Co-Polymer
Balloon folding	ø 1.25 - 1.5 mm: Two-fold; ø 2.0 - 4.0 mm: Tri-fold
Balloon markers	Platinum-Iridium: ø 1.25 - 1.5 mm one marker; ø 2.0 - 4.0 mm two markers
Coating distal shaft	Hydrophilic (end of balloon to Guide Wire (GW) exit port)
Balloon and tip coating	ø 1.25 - 2.0 mm: Hydrophilic ø 2.50 - 4.0 mm: Hydrophobic
Simultaneous use compatibility	6F guiding catheter (min. I.D. 0.070” / 1.78 mm), up to ø 3.5 mm
Diameter	2.6F (ø 1.25 - 2.0 mm); 2.7F (ø 2.5 - 3.5 mm); 2.9F (ø 4.0 mm)

Balloon diameter x length (mm)
		ø 1.25 x 6-20	ø 1.50 x 6-20	ø 2.00 x 10-30	ø 2.50 x 10-30	ø 3.00 x 10-30	ø 3.50 x 10-30	ø 4.00 x 10-30
Nominal Pressure (NP)	atm*	7	7	7	7	7	7	7
Nominal Pressure (NP)	ø (mm)	1.24	1.49	2.01	2.49	3.08	3.62	3.95
Rated Burst Pressure (RBP)	atm*	14	14	14	14	14	14	14
Rated Burst Pressure (RBP)	ø (mm)	1.37	1.72	2.23	2.93	3.50	4.06	4.55
*1 atm= 1.013 bar

	Balloon ø (mm)	Catheter length 140 cm Balloon length (mm)
5F		6	10	15	20	25	30
	1.25	393289	393291	393298	393305
	1.5	393290	393292	393299	393306
	2		393293	393300	393307	393312	393317
	2.5		393294	393301	393308	393313	393318
	3		393295	393302	393309	393314	393319
	3.5		393296	393303	393310	393315	393320
	4		393297	393304	393311	393316	393321

IFU Link

Refer to this IFU link for a copy of the Instructions for Use and for a complete listing of the indications, contraindications, warnings and precautions.

References:

Indication as per IFU
1.25-2.0 mm diameter
Any combination of two diameters not larger than 3.5 mm within a 6F guiding catheter with a minimal inner diameter of 0.070”/1.78 mm

Bench test with 1.5/15mm size when compared to Mini Trek and Emerge, data on file
Bench test with 3.0/20mm size when compared to Trek, data on file
Data on file
Bench test with 1.5/15mm size when compared to Mini Trek, data on file

Teleflex, the Teleflex logo, and Pantera are trademarks or registered trademarks of Teleflex Incorporated or its affiliates in the U.S and/or other countries. All other names are the trademarks or registered trademarks of their respective owners. Refer to this IFU link for a copy of the Instructions for Use and for a complete listing of the indications, contraindications, warnings and precautions. Information in this material is not a substitute for the product Instructions for Use. Not all products may be available in all countries.
