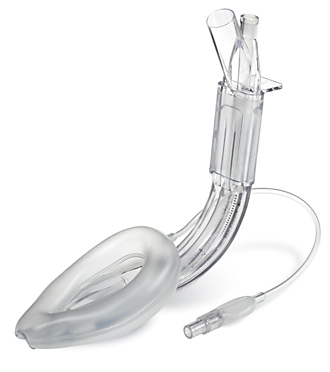

LMA Supreme Airway
When Lives Depend on You, Depend on LMA Airways.
With precious few seconds available to choose a rescue airway device, the decision is a critical one. The leading single use, gastric access laryngeal mask airway with a built-in drain tube, the LMA Supreme Airway is the airway of choice.
Three benefits of Second-Generation LMA Airways:
- A dual seal (oropharyngeal seal and esophageal seal) that is designed to functionally separate the respiratory tract from the gastrointestinal tract
- Ability to manage gastric content via the drain tube
- Ability to conduct diagnostic tests to confirm placement
LMA Supreme Airway
| Item Number |
Mask Size | Patient Weight | MAXIMUM CUFF VOLUME (AIR)* | MAXIMUM SIZE OG TUBE | QTY/CASE |
|---|---|---|---|---|---|
| 175010 | Size 1 | up to 5 kg | up to 5 mL | 6 French | 10 |
| 175015 | Size 1½ | 5 –10 kg | up to 8 mL | 6 French | 10 |
| 175020 | Size 2 | 10 – 20 kg | up to 12 mL | 10 French | 10 |
| 175025 | Size 2½ | 20 – 30 kg | up to 20 mL | 10 French | 10 |
| 175030 | Size 3 | 30 – 50 kg | up to 30 mL | 14 French | 10 |
| 175040 | Size 4 | 50 – 70 kg | up to 45 mL | 14 French | 10 |
| 175050 | Size 5 | 70 – 100 kg | up to 45 mL | 14 French | 10 |
| OG= orogastric tube * These are maximum volumes that should never be exceeded. The recommended intracuff pressure should never exceed 60 cm H20. |
|||||

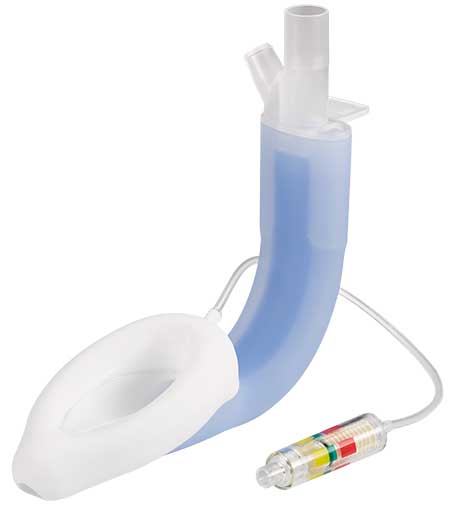

LMA Protector Airway
The most advanced second-generation airway from Teleflex.
The LMA Protector Airway with Cuff Pilot Technology from Teleflex is the only laryngeal mask that combines a pharyngeal chamber and dual gastric drainage channels, designed specifically to channel gastric content away from the airway. The LMA Protector Airway features Cuff Pilot Technology and a 100% silicone airway tube and cuff.
| Item Number |
MASK SIZE | PATIENT WEIGHT (KG) | MAXIMUM INTRACUFF PRESSURE (CM H20*) |
MAXIMUM ENDOSCOPE ETT ID (MM) |
LARGEST SIZE OG TUBE (FR) |
|---|---|---|---|---|---|
| 192030 | 3 | 30 – 50 | 60 | 6.5 | 16 |
| 192040 | 4 | 50 – 70 | 60 | 7.5 | 18 |
| 192050 | 5 | 70 – 100 | 60 | 7.5 | 18 |

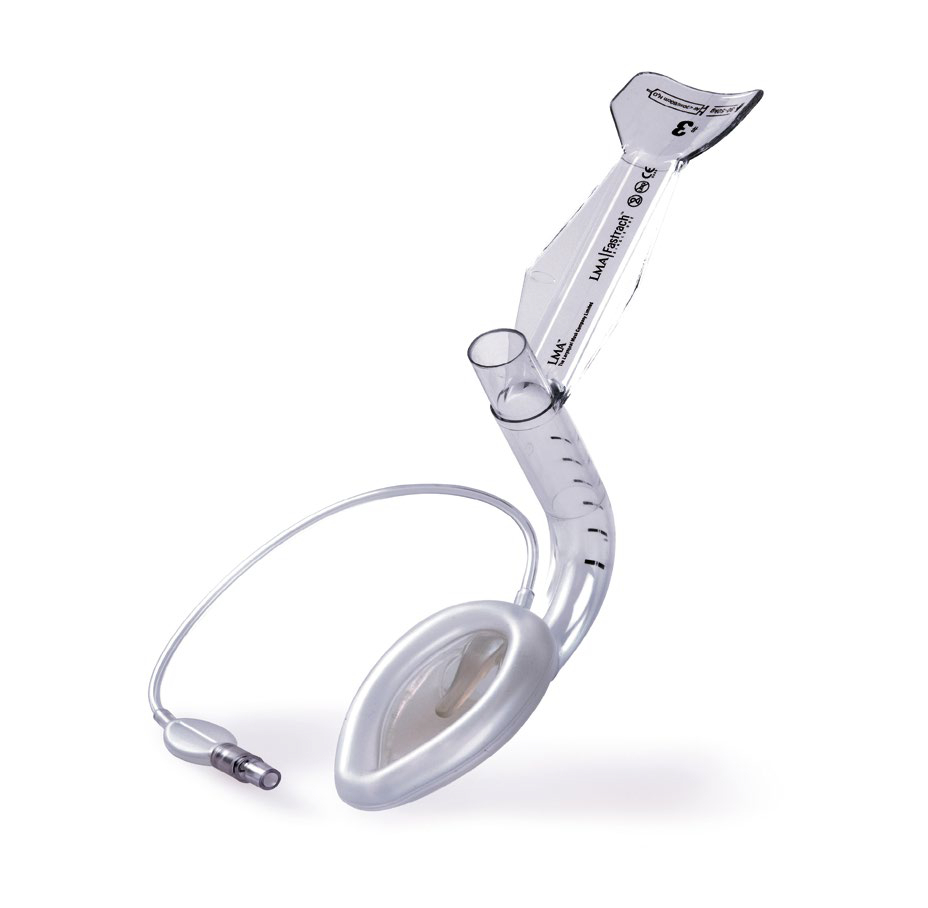

LMA Fastrach SU Airway
Intubation Airway
Made of PVC.
Designed for the anticipated or unanticipated difficult airway situation and for cardiopulmonary resuscitation, the LMA Fastrach Airway facilitates continuous ventilation and intubation. The rigid handle of the device facilitates one-handed insertion, removal and adjustment to enhance oxygenation and alignment with the glottis.
- Not made with natural rubber latex
- Sterile
- Single-use
| REF. | SIZE | Patient Weight |
MAXIMUM CUFF VOLUME (AIR)* |
LARGEST ETT ID** | QTY | ||||
|---|---|---|---|---|---|---|---|---|---|
| 135130 | 3 | Children 30–50 kg | 20 ml | 6.0 mm | 6.5 mm | 7.0 mm | 7.5 mm | 8.0 mm | 10 |
| 135140 | 4 | Adults 50–70 kg | 30 ml | 6.0 mm | 6.5 mm | 7.0 mm | 7.5 mm | 8.0 mm | 10 |
| 135150 | 5 | Adults 70–100 kg | 40 ml | 6.0 mm | 6.5 mm | 7.0 mm | 7.5 mm | 8.0 mm | 10 |
| *These are maximum volumes that should never be exceeded. It is recommended that the cuff be inflated to a maximum of 60 cm H2O intracuff pressure. | |||||||||
| ** All sizes (6, 6.5, 7, 7.5 and 8) of reusable LMA Fastrach ETT are compatible with LMA Fastrach and LMA Fastrach single-use Airways. However, only sizes 6, 6.5 and 7 of LMA Fastrach ETT single-use are compatible with LMA Fastrach and LMA Fastrach single-use Airways. | |||||||||

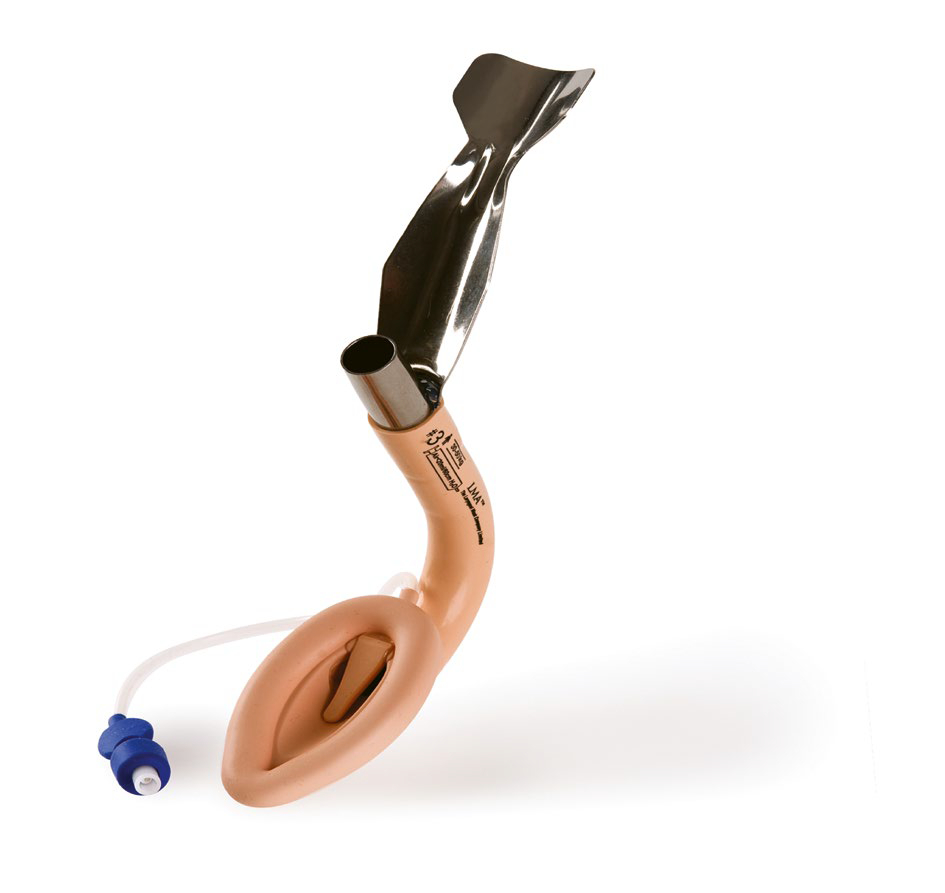

LMA Fastrach Airway
Intubation Airway
Made of silicone.
- Not made with natural rubber latex
- Reusable
| REF. | SIZE | Patient Weight |
MAXIMUM CUFF VOLUME (AIR)* |
LARGEST ETT ID** | QTY | ||||
|---|---|---|---|---|---|---|---|---|---|
| 130030 | 3 | Children 30–50 kg | 20 ml | 6.0 mm | 6.5 mm | 7.0 mm | 7.5 mm | 8.0 mm | 1 |
| 130040 | 4 | Adults 50–70 kg | 30 ml | 6.0 mm | 6.5 mm | 7.0 mm | 7.5 mm | 8.0 mm | 1 |
| 130050 | 5 | Adults 70–100 kg | 40 ml | 6.0 mm | 6.5 mm | 7.0 mm | 7.5 mm | 8.0 mm | 1 |
| * These are maximum volumes that should never be exceeded. It is recommended that the cuff be inflated to a maximum of 60 cm H2O intracuff pressure. | |||||||||
| ** All sizes (6, 6.5, 7, 7.5 and 8) of reusable LMA Fastrach ETT are compatible with LMA Fastrach and LMA Fastrach single-use Airways. However, only sizes 6, 6.5 and 7 of LMA Fastrach ETT single-use are compatible with LMA Fastrach and LMA Fastrach single-use Airways. | |||||||||

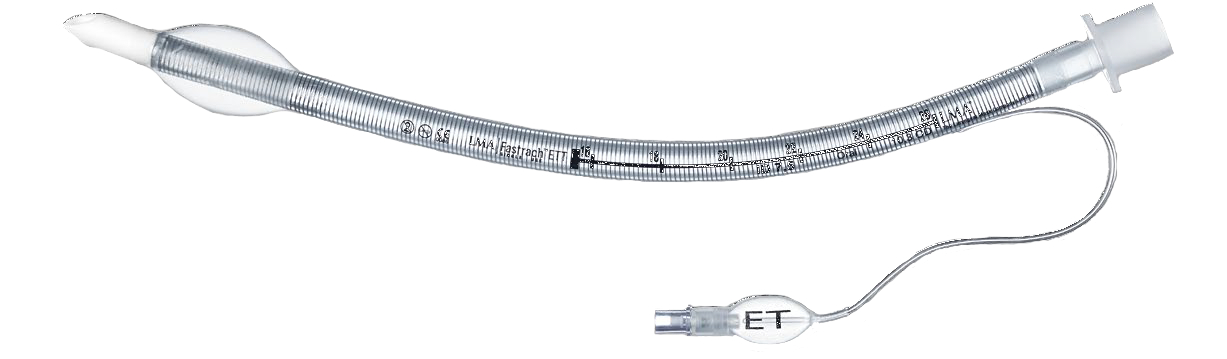

LMA Fastrach ETT SU
The LMA Fastrach ETT is an endotracheal tube designed to be compatible with the LMA Fastrach and LMA Fastrach single-use Airways.
LMA Fastrach ETT SU
PVC ETT with stabilising rod.
- Not made with natural rubber latex
- Sterile
- Single-use
| REF. | TUBE SIZE** | QTY |
|---|---|---|
| 136060 | 6.0 mm | 10 |
| 136065 | 6.5 mm | 10 |
| 136070 | 7.0 mm | 10 |
| 136075 | 7.5 mm | 10 |
| 136080 | 8.0 mm | 10 |
| ** All sizes (6, 6.5, 7, 7.5 and 8) of reusable LMA Fastrach ETT are compatible with LMA Fastrach and LMA Fastrach single-use. However, only sizes 6, 6.5 and 7 of LMA Fastrach ETT single-use are compatible with LMA Fastrach and LMA Fastrach single-use. | ||

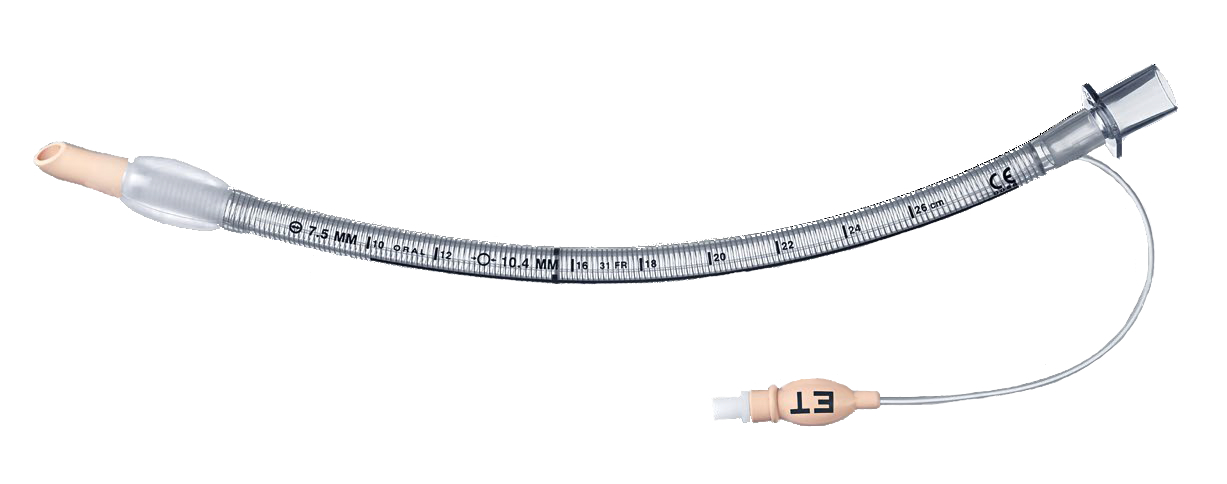

LMA Fastrach ETT
LMA Fastrach ETT
Silicone ETT.
- Not made with natural rubber latex
- Reusable
| REF. | TUBE SIZE** | QTY |
|---|---|---|
| 131060 | 6.0 mm | 1 |
| 131065 | 6.5 mm | 1 |
| 131070 | 7.0 mm | 1 |
| 131075 | 7.5 mm | 1 |
| 131080 | 8.0 mm | 1 |
| ** All sizes (6, 6.5, 7, 7.5 and 8) of reusable LMA Fastrach ETT are compatible with LMA Fastrach and LMA Fastrach single-use. However, only sizes 6, 6.5 and 7 of LMA Fastrach ETT single-use are compatible with LMA Fastrach and LMA Fastrach single-use. | ||

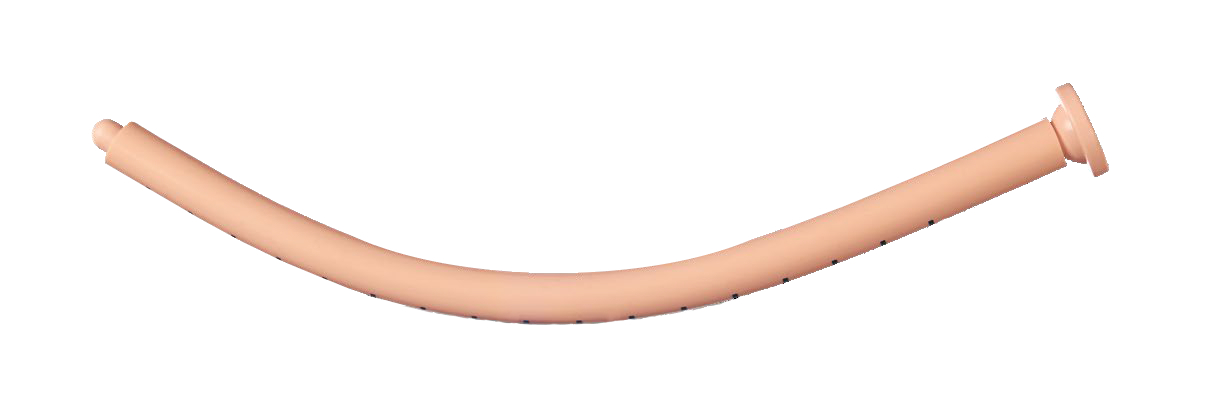

LMA Fastrach Stabiliser Rod
100% silicone.
- Reusable
| REF. | QTY |
|---|---|
| 130099 | 1 |
